1A1 vitrified diamond grinding wheel for natural diamond
Overview
Place of Origin:Guangdong, China
Brand Name:JR
Model Number:1A1
Shape:Flat-Shaped
Abrasive:diamond
Bonding Agent:Ceramic
Diamond Grit:35#-5000#
Quality:high
Service:OEM
Material for working layer:diamond powder and bond
Usage:Polishing, grinding cutting or drilling
Circle:Abrasive tools
Selling point:Competitive price
Technique:sinter or electroplate,resin bond,ceramic bond

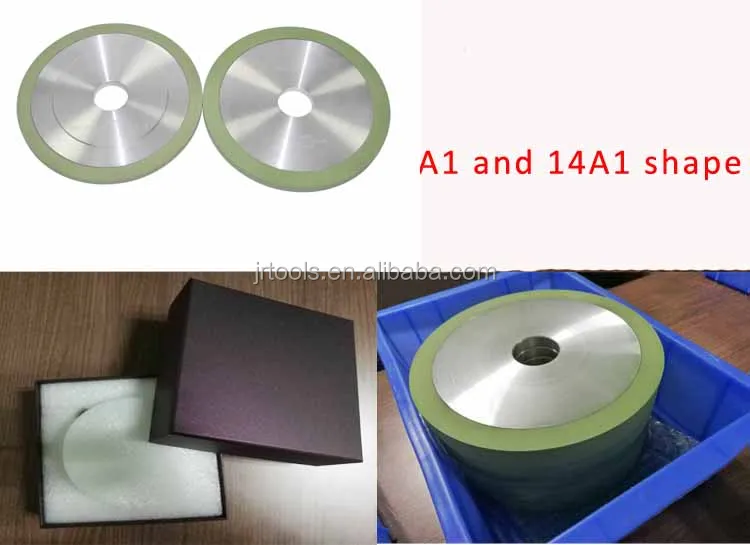

1A1 vitrified diamond grinding wheel for natural diamond
1A1 flat-shape and 14A1 shape diamond abrasive vitrified grinding wheels enjoys characteristics of good self-sharpening, blocking-free, high grinding efficiency, superior finish, long working life, less heat and easy dressing.

Size:
Shape | Size(D)x (T)x (H)x (X) | Concentration | Grit Size | Bond Materials | ||
1A1 | 170x8x32x14 | 150% | MD20 | MD40/60 | MD80 | Vitrified bond |
170x9.5/10x32x14/15 | ||||||
175x5x32x10 | ||||||
175x5x32x15 | ||||||
175x10x32x10 | ||||||
175x10x32x15 | ||||||
220x10x32x20 | ||||||
14A1 | D160xT10xH32xX10xU5 | |||||
D170xT10xH32xX10xU5 | ||||||
D175xT10xH32xX10xU5 | ||||||
As per your size | ||||||
Application:
Vitrified Diamond wheels are used for the grinding of natural diamond and gemstones with the feature of good shape maintainability, sharpness and durability.
Concentration:
75% 100% 150%
Drawing


Work piece:
Vitrified Diamond wheels are used for the grinding of natural diamond and gemstones with the feature of good shape maintainability, sharpness and durability.
Characteristics:
1.High efficient of the vitrified grinding wheel for diamond processing
2.Low loss for the high quality ceramic vitrified grinding wheel
3.Easy to be dressed
4. Long life.

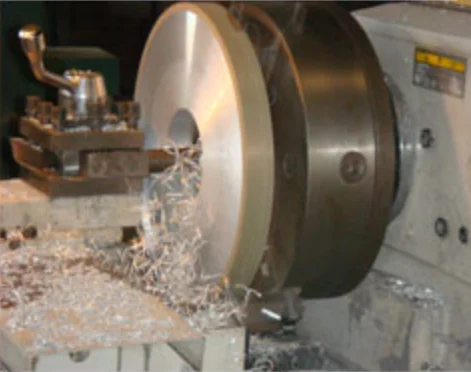

Client‘s application photo

![~8ZMO4QICLSPGK2L]_J[4X8](http://sc01.alicdn.com/kf/HTB1Ksi3f6QnBKNjSZSgq6xHGXXaN/200262480/HTB1Ksi3f6QnBKNjSZSgq6xHGXXaN.jpg)
For more than 20 year, GZ JR Diamond tools Co.,Ltd.—is the only diamond&CBN grinding wheels manufacturer in Guangzhou, has become one of best choices in super hard material industry for South China and International market.
JR’s electroplated, resin bond and vitrified bond wheels are sold to over 30 countries including America, Germany, Austria, Japan, Mexico,Russia and so on. With strong R&D team, strict quality control systems, powerful domestic and foreign sales network, our products have covered stone, ceramic, glass, precious stone, diamond, hard metal, and constantly expanded to the photoelectric high-tech fields such as automotive components, precision mechanical parts, electronic and optical glass.
We take pride in developing and producing high-quality, high-performance products to meet the technological challenges of grinding conventional metals and today’s sophisticated alloys.
