Popular small resin bond grinding wheel knife sharpener

JR-1A1

Delivery:

FOB

minimum order:

10 pieces

Supply Ability:

10000pieces / Month

Country of Origin:

Guangzhou

Quantity:

USD20.00 - USD200.00 / pieces

Contact Now

add to cart

Name:Popular small resin bond grinding wheel knife sharpener
Abarasive material:Diamond or CBN
Body Material:Aluminum or Steel
Grain size:all grain size can be customized
Shape:1A1
Usage:grinding, sharpening, polishing
Bond:resin,vitrified,electroplated,metal bond are also available)
Work piece:metal,HSS,tungsten carbide,glass,stone...etc
Certificate:ISO9001
Size:all sizes,like 100mm,150mm,175mm,200mm,250mm....etc
Application:Aluminum
Application:Deburring
Application:Ferrous Metals
Grit:60/80
Grit:100/120
Grit:150
Grit:220
Grit:54
Grit:46
Grit:others
Wheel Type:Straight Grinding Wheels
Shape:Flat-Shaped
Bonding Agent:Resin
Place of Origin:CN;GUA
Brand Name:JR
Model Number:1A1
Viscosity:as required

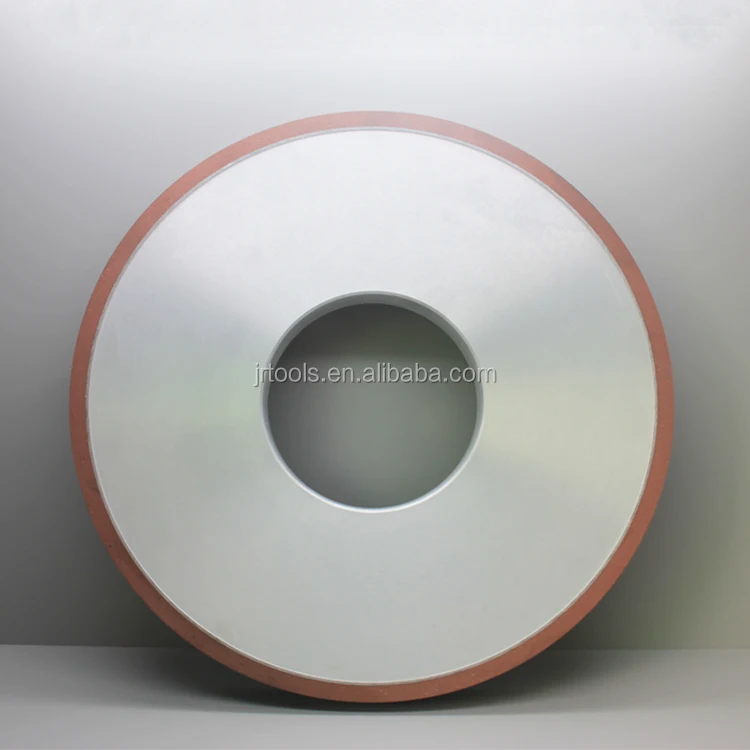

1A1 resin bond diamond grinding stone for carbide:

Product Description

Resin bond grinding wheel has the characteristics with certain flexibility, low heat resistance, good self-sharpening, simple processing, and shorter process cycle. It is widely used in coarse grinding, cutting and free grinding.

As resin bond grinding wheels work well in metal material, and have longer life, it is widely use for bench grinders.

Abrasive: diamond

Shape: 1A1

Bond: resin

Material: resin bond, diamond powder and aluminum base

Packing: purple hard material box

Certificate: ISO

Application: resin bonded diamond wheels are for tungsten steel grinding, high carbon steel grinding, PG optical grinding, core grinding and so on.

Feature

1. Uniform diamond powder, high wear resistance;

2. Good stability, the diamond powder is not easy to come off. Resin diamond wheel is less wear and tear in the processing, long use life, high grinding ratio;

3. High grinding efficiency, wide range of applications. Can be processed a variety of high hardness materials, especially for the materials that the ordinary abrasive wheel is hard to process it;

Other size:

D	T	H	X
60	4	31.75	6
75	6/10	28/31.75	6/10
80	10	28	10
92	40	26	10
100	6/10	10/20/31.75	6/10
125	6/10/12/15/18	13/20/31.75	6/10
150	5/10/12/14/20	25.4/31.75/32	5/6/10
175	10/13/20	31.75/32	10
180	8/10/12/13/15/20	31.75	6
200	10/15/20	32/76.2	5/6/10
250	20/25	76.2	5/10
300	20/30/40	76/76.2/127	10
350	20/30/32/40	127	10
400	30	127	10
700	40	304.80	5/10
Other size can be customized.
