Sintered hollow core diamond drill bits

JR01
Delivery:
FOB
minimum order:
1 piece
Supply Ability:
1000piece / Month
Country of Origin:
Guanghou
Quantity:
USD30.00 - USD200.00 / piece
Contact Now
add to cart
  • Place of Origin:CN;GUA
  • Type:Core Drill Bit
  • Brand Name:JinRui
  • Model Number:JR01
  • Product name:Sintered hollow core diamond drill bits
  • Type:Core Drill Bit
  • Use:glass
  • Material:Steel&Diomond
  • Application:Marble,Granite,Glass
  • Character:Operated without water
  • Durability:Longer
  • Service:OEM&ODM
  • Size:Customized
  • MOQ:1piece
Product Description
Diamond core drill bit, also known as boring cutters or thin-walled drill bits, can reduce the cost in the production. And it can successfully put out a reusable bar in the workpiece to be processed so that the iron crumb that can be reused after drill bit processing and then becomes a finished product.

The core bore diamond drill bit is made of high quality steel base and synthetic diamond powder by sintering process.
Feature
The diamond core drill bit has the characteristics of high efficiency and long service life. It is especially suitable for processing small deep hole trepanning. The diamond core drill bit consists of a blade, a guide block, a cutter body and a cutter bar. The blades and the guide blocks are arranged circumferentially on the body. The geometry of the blades, the height, the width of the front cutting edge, and the relative position between the planes formed in front of the blade are unique. When the drill bit is working, the cutting force is shared by blades. Thus the cutting is smooth, and it has good chipping effect and high cutting efficiency. It can be used to complete deep hole trepanning with a diameter of at least 20mm and a depth of 50 to 100 times.

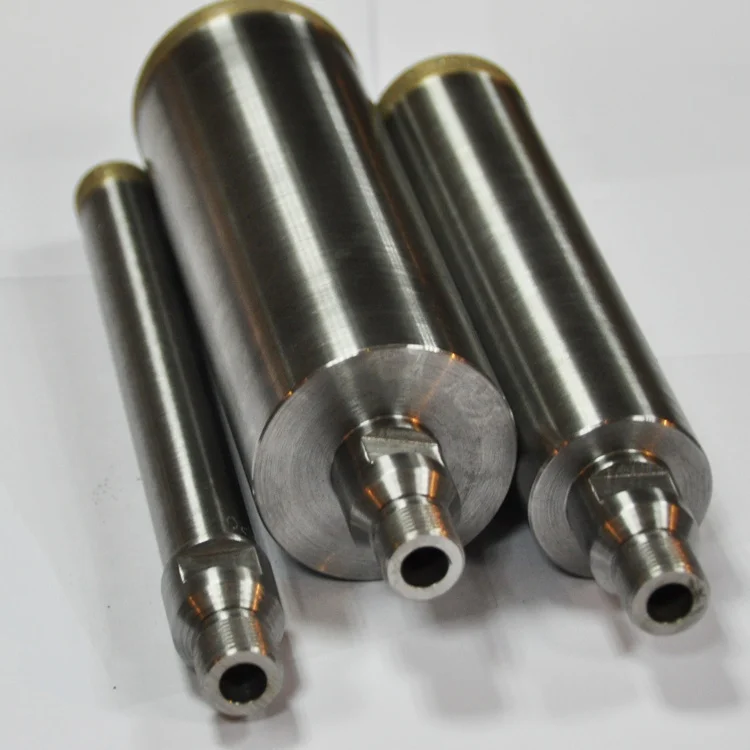

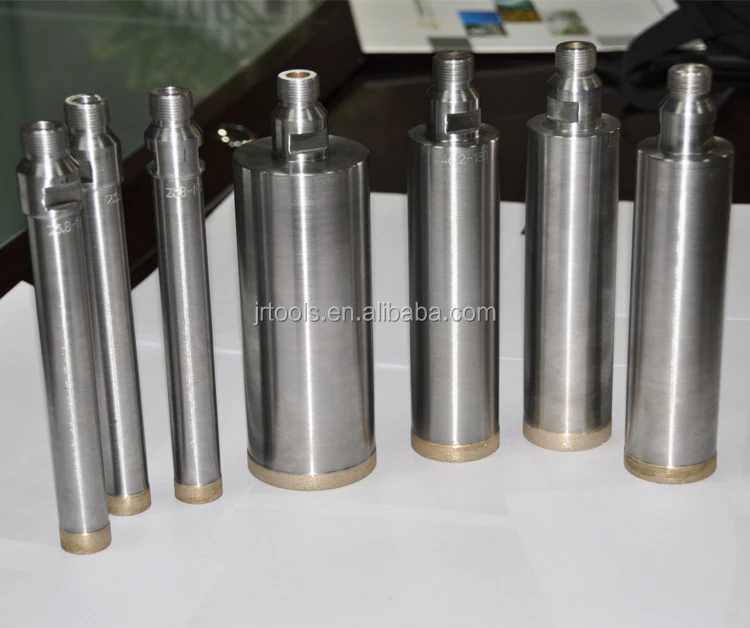

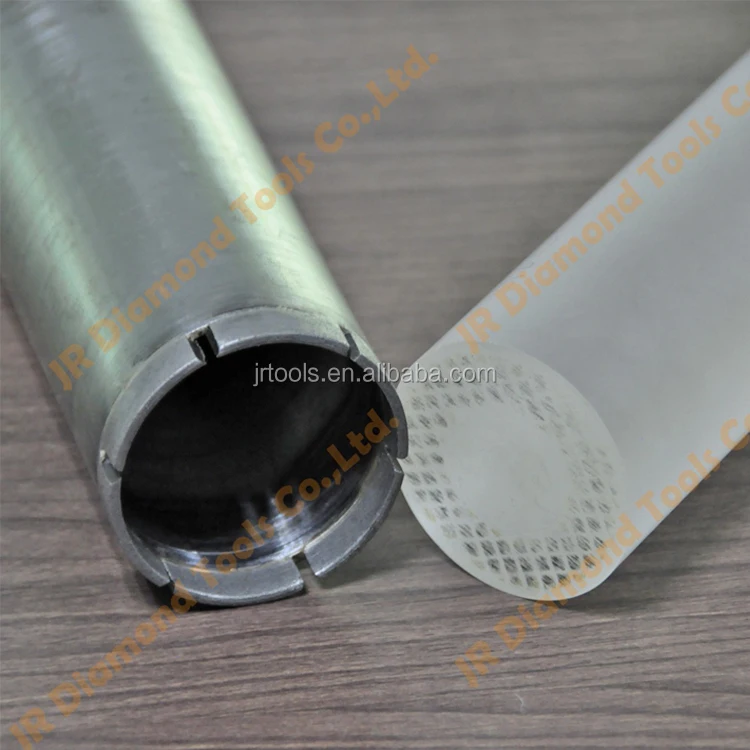

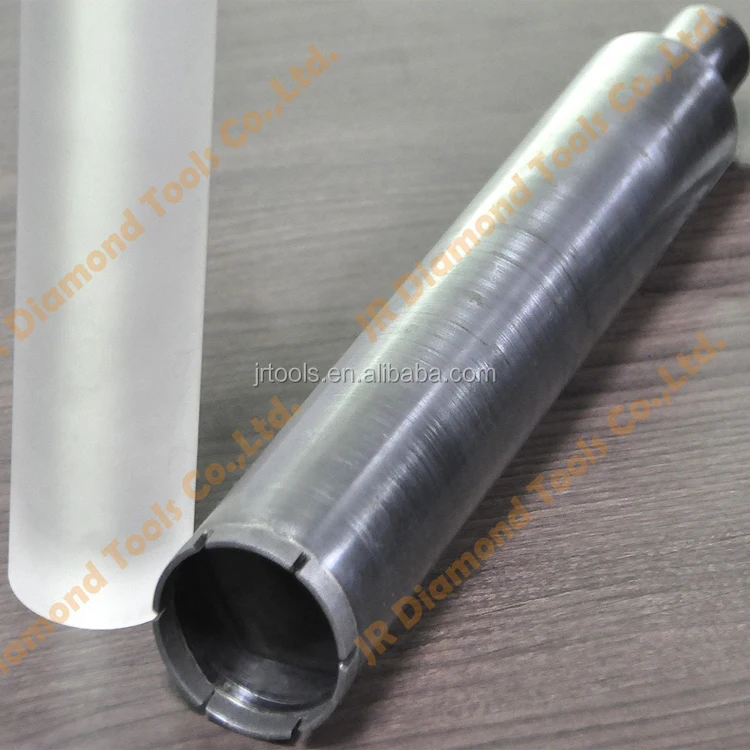

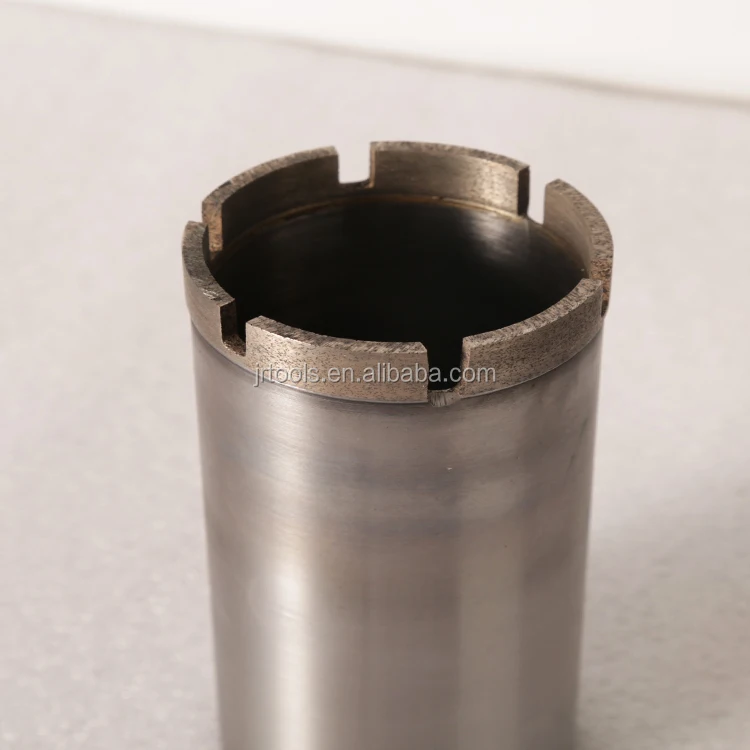

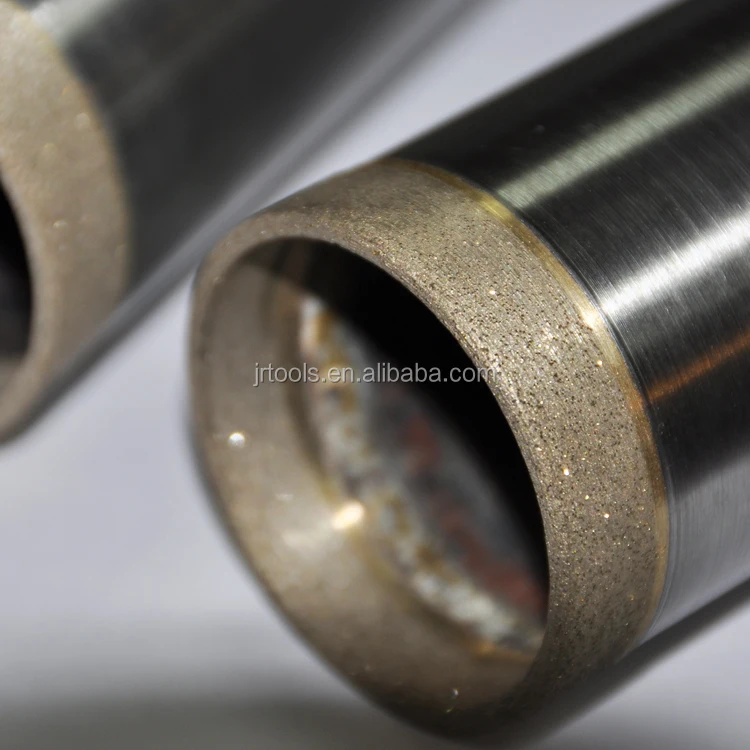

Detailed Images




Size Information
Related size parameter table
D(diameter)
17
22
23/23.2
26.75/27.75
28.5
L(length)
180
180
180
180
280
D(diameter)
31.5
35.2
37/37.5
38/39
50.8
L(length)
280
280
280
280
280

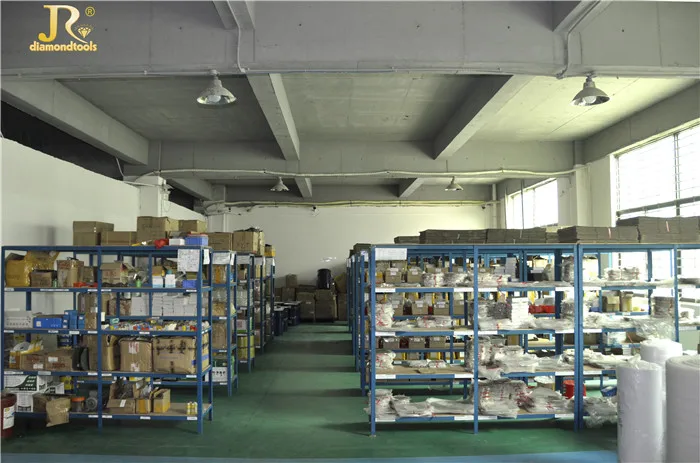

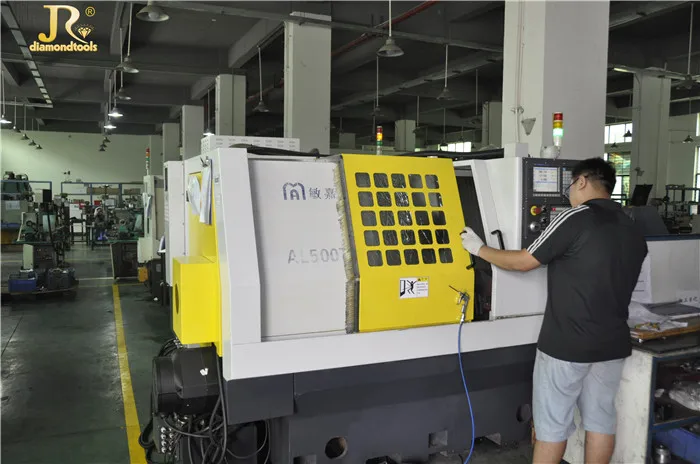

Company Introduction
For more than 20 year, GZ JR Diamond tools Co.,Ltd.—is the only diamond&CBN grinding wheels manufacturer in Guangzhou, has become one of best choices in super hard material industry for South China and International market.
JR’s electroplated, resin bond and vitrified bond wheels are sold to over 30 countries including America, Germany, Austria, Japan, Mexico,Russia and so on. With strong R&D team, strict quality control systems, powerful domestic and foreign sales network, our products have covered stone, ceramic, glass, precious stone, diamond, hard metal, and constantly expanded to the photoelectric high-tech fields such as automotive components, precision mechanical parts, electronic and optical glass.
We take pride in developing and producing high-quality, high-performance products to meet the technological challenges of grinding conventional metals and today’s sophisticated alloys.
