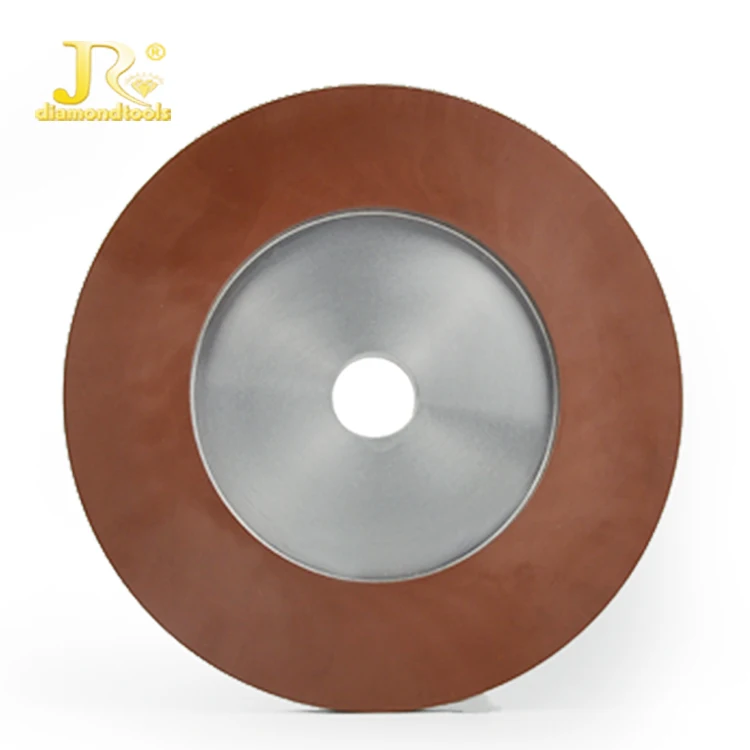

Resin bond diamond grinding disk for Microscope lens

JR20-1A2

Delivery:

FOB

minimum order:

10 pieces

Supply Ability:

10000pieces / Month

Country of Origin:

Guangzhou

Quantity:

USD20.00 - USD150.00 / pieces

Contact Now

add to cart

Name:Resin bond diamond grinding disk for Microscope lens
Abarasive material:Diamond
Body Material:Aluminum
Grain size:all grain size can be customized
Shape:1A1
Usage:grinding, sharpening, polishing
Bond:resin
Size:all sizes,like 100mm,150mm,175mm,200mm,250mm....etc
Work piece:metal,HSS,tungsten carbide,glass,stone...etc
Certificate:ISO9001
Grit:400# to 5000#
Wheel Type:Straight Grinding Wheels
Shape:Flat-Shaped
Bonding Agent:Resin
Place of Origin:CN;GUA
Brand Name:JR
Model Number:1A2
Hardness:as required
Viscosity:as required
Size:as required

Resin bond diamond grinding disk for Microscope lens:

Product Description

Specification size: D200*W40*6Umm

Cylindricity: 0.001μM

Feeding amount: 0.005MM

Grinding method: wet grinding andpolishing

Shape: parallel grinding wheel

Type: High-speed grinding wheel

Process: Sintering

Material: ResinBond

Maximum linear speed: 50m/s

Grain: 1200#

Grain: coarse grinding60-150#Feed0.03-0.05mm

Semi-finish: 180-270# Feed: 0.02mm

Fine grinding 320-400# Feed: 0.01mm

Polishing: 600#-W1.5

Performance: high hardness, high strength, strong grinding ability

Other size: (mm)

Diameter(D)	Thickness(T)	Width of working layer (W)	Depth of working layer (X)	Hole size (H)
100	22	2/5/10/15	3/6	20/27/31.75
125	22	2/5/10/15	3/6	20/27/31.75
150	24	2/5/10/15	3/6	20/27/31.75
200	17/29	2/5/10/15	3/6	20/27/31.75
Other size can be customized.

Select concentration

Concentrationmeans the amount of synthetic diamond in the abrasive layer. Theconcentration of resin bond grinding wheel isgenerally50% -100%, most is 75%. When require the high smooth finish, it can be less than 75%. For forming grindingormaking the grinding wheels get long service life, it should be 100% or more .
